Oxygen Monitor

Get a Price/Quote

MOQ : 01 Unit

Oxygen Monitor Specification

Height
160 mm

Power
3V DC (2 AA Batteries)

Phase
Single Phase

Accuracy
3% of reading

Temperature Range
0C to 50C

Storage Capacity
100 data sets

Use
Health & Safety Monitoring

Properties
Portable, Lightweight, Durable, High sensitivity

Function
Detection and alarming of unsafe oxygen levels

Shape
Rectangular

Treatment Type
Oxygen Monitoring

Automation Grade
Automatic

Product Type
Oxygen Monitor

Humidity Range
15% - 95% RH (Non-condensing)

Display Type
Backlit digital

Weight
200 grams

Suitable For
Hospitals, Laboratories, Industrial Units

Dimension (L*W*H)
160 x 60 x 30 mm

Material
ABS Plastic Housing

Color Code
White and Blue

Frequency
50 Hz

Application
Continuous monitoring of oxygen levels in ambient air

Display
Digital LCD Display

Voltage
3V DC

Power Source
Battery Operated

Data Output
USB interface for data transfer

Sampling Method
Diffusion

Response Time
< 15 seconds

Sensor Type
Electrochemical Oxygen Sensor

Alarm
Audio and Visual Alarm for critical levels

Battery Life
Up to 250 hours continuous operation

Operating Altitude
Up to 2000 meters

Oxygen Monitor Trade Information

Minimum Order Quantity
01 Unit

Delivery Time
Days

Main Domestic Market
All India

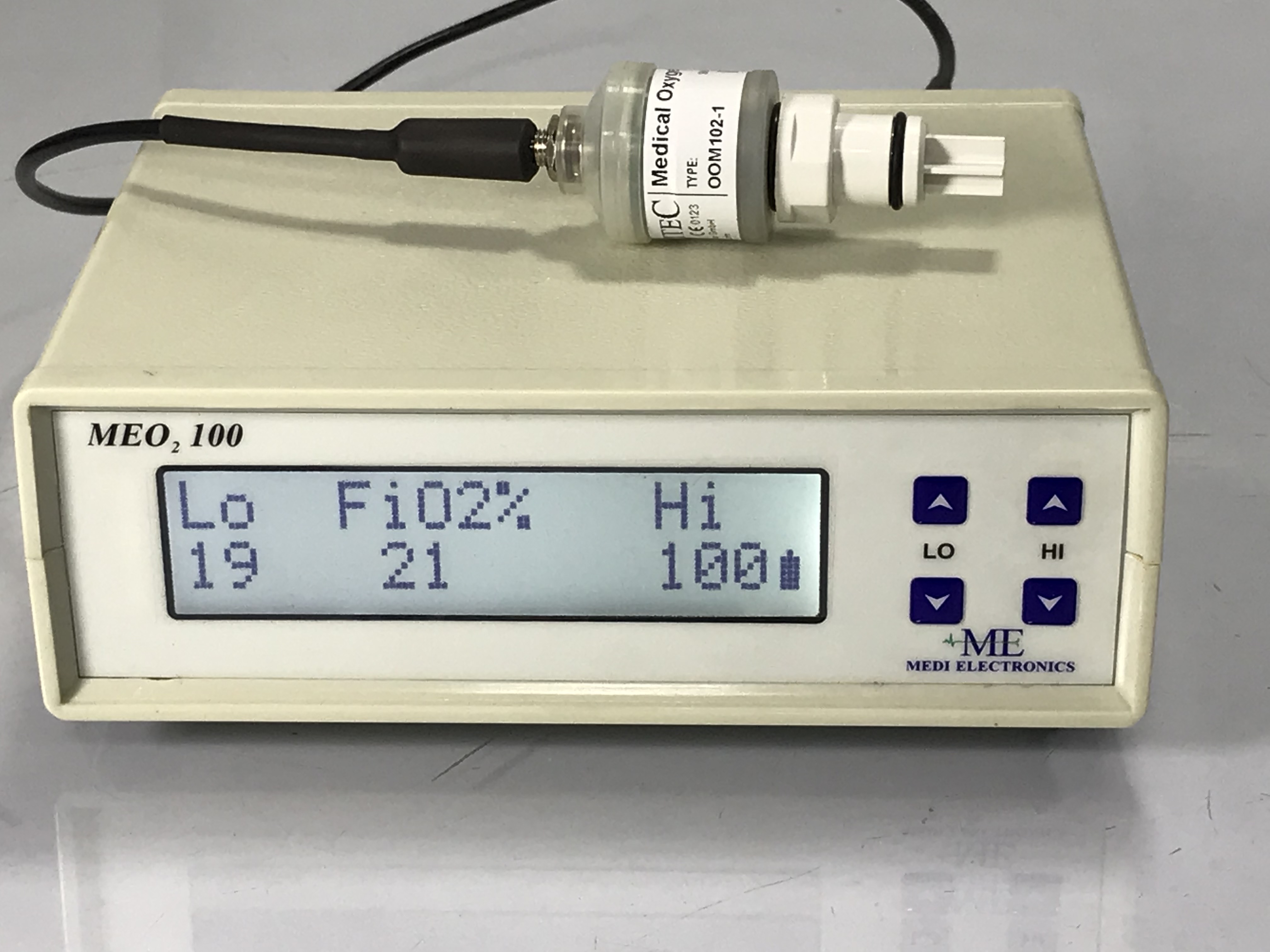

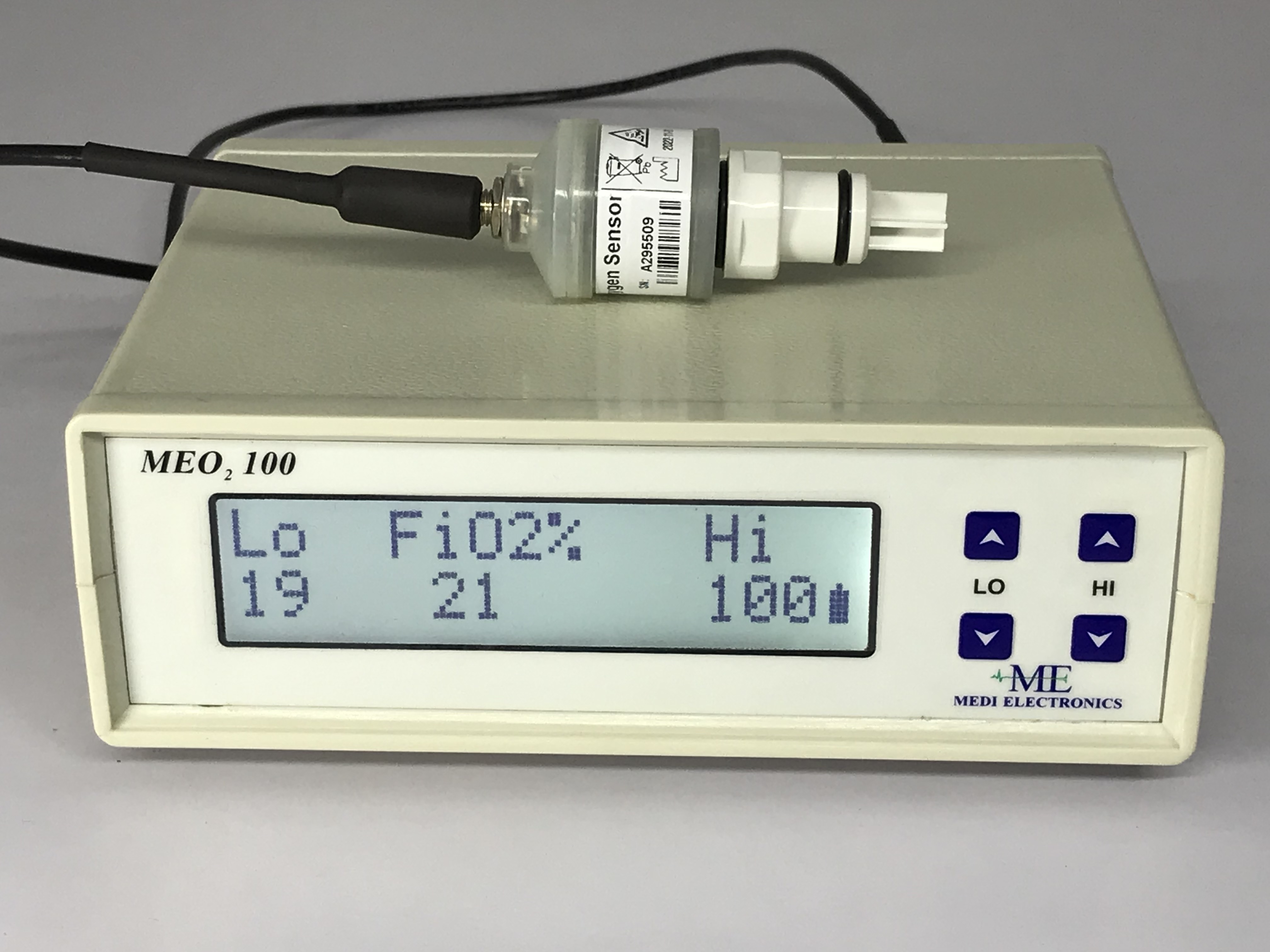

About Oxygen Monitor

We are an accomplished organization which has gained name and fame in providing FieldOxygen Monitorto the customers.

Features:

Fast Response.
Accurate Reliable.
Auto calibration for 21% 100% oxygen.
Oprated on Mains supply.
User selectable audiovisual alarm limits.
Both upper lower alarm limits selectable by only two key.
Large backlight LCD.
Battery backup(optional).

Technical Specification:
Equipment Classification:	Class 2 Device, Continuous Operation.
Water protection:	Not protected .
Alarm:	Audio Visual.
Alarm range:	Default low = 18, High = 75. User selectable low = 15 TO 90. User selectable High = 21 TO 100.
Battery Backup (Optional):	8 Hrs .

High Sensitivity and Reliable Alerts

This oxygen monitor utilizes advanced electrochemical sensing technology to ensure high accuracy and responsiveness. Visual and audio alarms are triggered instantly if oxygen levels fall below safe thresholds, allowing for prompt action to safeguard health and safety in critical environments.

Portable Design for Versatile Use

Designed with lightweight ABS plastic and compact dimensions, the device is easy to carry and deploy across multiple locations. Its battery-powered operation and robust construction make it suitable for fieldwork and stationary settings alike, ensuring dependable performance wherever oxygen monitoring is required.

User-Friendly Data Management

Equipped with a backlit digital LCD, the oxygen monitor offers clear readings in varying lighting conditions. It stores up to 100 data sets and features a USB interface for straightforward data export, simplifying compliance reporting and long-term monitoring trends analysis.

FAQs of Oxygen Monitor:

Q: How does the oxygen monitor alert users about dangerous oxygen levels?

A: The monitor is equipped with both audio and visual alarms that are triggered whenever oxygen concentrations deviate from safe limits, ensuring immediate awareness and swift response.

Q: What are the key benefits of using this oxygen monitor in healthcare and industrial settings?

A: The device provides continuous and precise monitoring with rapid detection, helping prevent hazardous situations, ensuring safety compliance, and facilitating timely intervention in hospitals, laboratories, and industrial units.

Q: When should I use the oxygen monitor for optimal safety?

A: This monitor is best used in any environment where oxygen levels may pose health or safety risks, such as confined spaces, during maintenance tasks, or in medical and research facilities.

Q: Where can the oxygen monitor be effectively deployed?

A: It can be used in hospitals, laboratories, manufacturing plants, and other industrial facilities where maintaining safe ambient oxygen levels is critical.

Q: What is the data storage and transfer process for this device?

A: The oxygen monitor can store up to 100 readings in its memory. Data output is facilitated via a USB interface, allowing users to transfer logged information easily to computers for record-keeping or analysis.

Q: How is the device powered, and how long can it operate?

A: The monitor operates on two AA batteries (3V DC), offering up to 250 hours of continuous use, making it ideal for prolonged monitoring tasks and remote applications.

Q: What makes the oxygen monitor durable and suitable for frequent use?

A: Constructed from sturdy ABS plastic, the device is designed to withstand regular handling. Its compact, portable shape makes it convenient for daily use in diverse work environments.
